AFM探针Adama导电金刚石镀层探针AD-40-AS 5根/盒
销售价
-货品编号：34-AD-40-AS(×5)
品牌：Adama探针
Adama探针:
5根
10根
有现货
+ -
盒（1-2周发货）
商品介绍
商品评价
【技术参数】
The conductive diamond coating is highly doped with boron which leads to a macroscopic resistivity of 0.003 - 0.005 ohm*cm.
Contact resistance is typically 10 kilo-ohms depending on contact radius measured on a silver surface. By using wear-resistant sharp diamond probes the contact size is well characterized and stays constant during mechanical measurements.
Quantitative and repeatable measurements for over 24 hours of continuous use have been demonstrated with these probes. A gold reflex coating deposited on the detector side of the cantilever to enhance the reflectance of the laser beam.
|
|
型号 | AD-40-AS-1 |
制造厂商 | Adama |
探针描述 | 导电金刚石镀层探针;硅基探针 |
类型 | 轻敲模式 |
应用 | 普通样品,扫描形貌 |
【产品详情】
| Lever | 1 | 2 | 3 | 4 |
Spring k (N/m) | 40(20 - 60) | - | - | - | |
Freq (kHz) | 290 (100- 300) | - | - | - | |
Length (µm) | 150 (215 - 235) | - | - | - | |
Width (µm) | 28 (17 - 33) | - | - | - | |
Thickness (µm) | 3.0(2.5 - 3.5) | - | - | - | |
Shape | Rectangular | - | - | - | |
Material | Diamond coated B-doped Silicon | - | - | - | |
Reflex Coating (nm) | Cr/Au | - | - | - | |
针尖描述 | ||
| Tip radius (nm) | 10 +/- 5 |
Tip height (µm) | 12.5 +/- 2.5 | |
Front angle (°) | 25 +/- 5 | |
Back angle (°) | 15 +/- 5 | |
Side angle (°) | 22.5 +/- 5 | |
Tip shape | Cone | |
Tip material | B-doped Silicon | |
Tip coating (nm) | Diamond | |
DESCRIPTION
f = 180 kHz | k = 40 N/m | tip coating: diamond

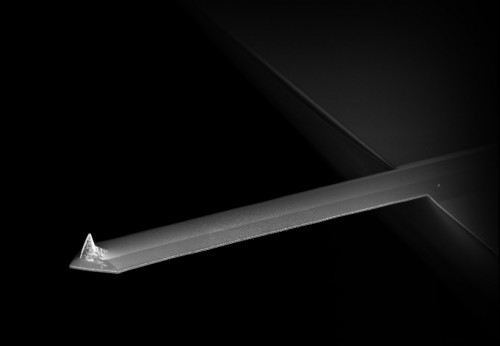

Highly conductive Apex Sharp diamond probes, formed by a unique patented process ensure the best possible nanomechanical and electrical performance. These tips are sharper and last longer than any other electrical AFM probe.The conductive diamond coating is highly doped with boron which leads to a macroscopic resistivity of 0.003 - 0.005 ohm*cm.
Contact resistance is typically 10 kilo-ohms depending on contact radius measured on a silver surface. By using wear-resistant sharp diamond probes the contact size is well characterized and stays constant during mechanical measurements.
Quantitative and repeatable measurements for over 24 hours of continuous use have been demonstrated with these probes. A gold reflex coating deposited on the detector side of the cantilever to enhance the reflectance of the laser beam.
